25000 – 60000 Lt capacities
CHASSIS AND STRUCTURE:
The chassis designed in accordance with the international transportation standards also available and prepared as having “I” section center members are welded by submerged welding machine. They are welded between 120/12 mm bottom or top flat steel and 5 mm hub plate with high resistance to allow to obtain the highest efficiency under all road and weather conditions.
- Length 9500 mm – 12000 mm
- Width 2550 mm
- 2 to 8 Sections
- Bottle, Elliptical, Double ”D” Type, Round Shape types.

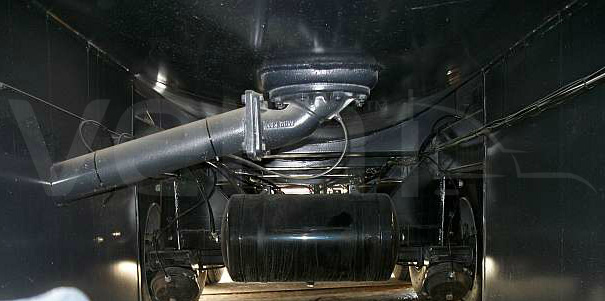

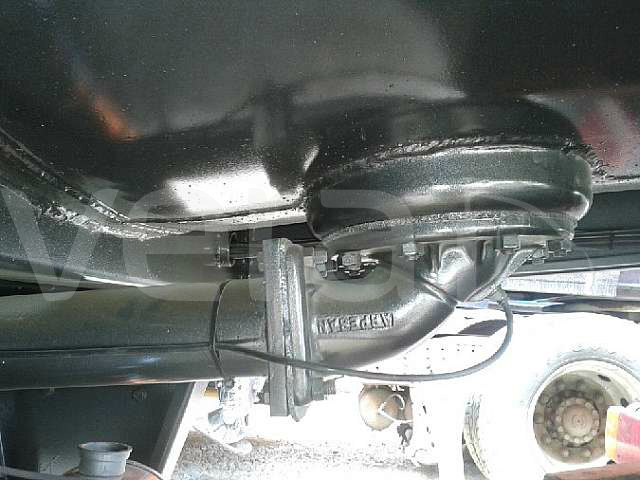

- Pneumatic Discharging Valve
LOADING AND UNLOADING:
Filling from bottom on the right side by driving direction via couplings or filling from top with filling hole on manhole lids
BPW, SAF,GİGANT or Turkısh Brand PIRLANTA , OSMANKOÇ 2 to 4 pcs Axles, each one is with 9-12-16 tons capacity according to the trailer drum or disc brakes, hub centric, with 10 wheel nuts, and automatic slack adjuster.
FRONT AXLE LIFTING:
Front shaft lifting system remote controlled from the driver’s seat
The WABCO or Haldex brand ABS or EBS brake system which is designed according to the European Standards is used. It consists of automatic brake ratchets, brake valves and brake bellows of 30.
It consists of automatic height adjusting system, Parabolic Z leaf springs, Suspension bellows, shock absorbers restricting extensive shaft movements and vibrations.
Mechanical leaf spring suspension system.
24 V illumination systems in conformity with the international standards, lamp with 7 functions, and electric socket with 7 pins are used. There are traffic warning panels on the vehicles.
Consists of double cycle telescopic legs each of which has a capacity of 24 tons.
King pin compliant with SEA/DIN norms and manufactured from steel (42 Cr Mo 4) which is highly resistant to being cut, stretched and broken off is of flange type and can be disassembled and assembled back.
TİRES AND WHEEL RIMS:
Tires 6 + 1 pieces of 385/65 R 22.5 sizes. Wheel Rims 6 + 1 piece 11.75V22.5 sizes or double wheel optional to the customer demand. Bridgestone, Pirelli, Goodyear, Continental or Turkısh Tires PETLAS
Water Retainer Mat, Spare tire carrier, Wheel leaning mounting, Fire extinguisher preserving cabinet.
BPW, SAF, Gigant Axle drum or disc axle can be preferred.
Chassis and tank group manufactured from imported metal sheet (Hardox or Domex).
Tank side can be Stainless Steel, Aluminum material.
Tire mark according to request.
The surfaces are cleaned under high pressure with water and bonder chemical liquid. Then it is dyed with one coat of epoxy die, and a last coat of acrylic die. It is very durable against chemical effectiveness. As desired, colors can be chosen from the RAL codes.
